Air to Cloth Ratio: What It Is and Why It Matters for Dust Collection Systems
Air to Cloth Ratio: What It Is and Why It Matters for Dust Collection Systems
Air to Cloth Ratio: What It Is and Why It Matters for Dust Collection Systems

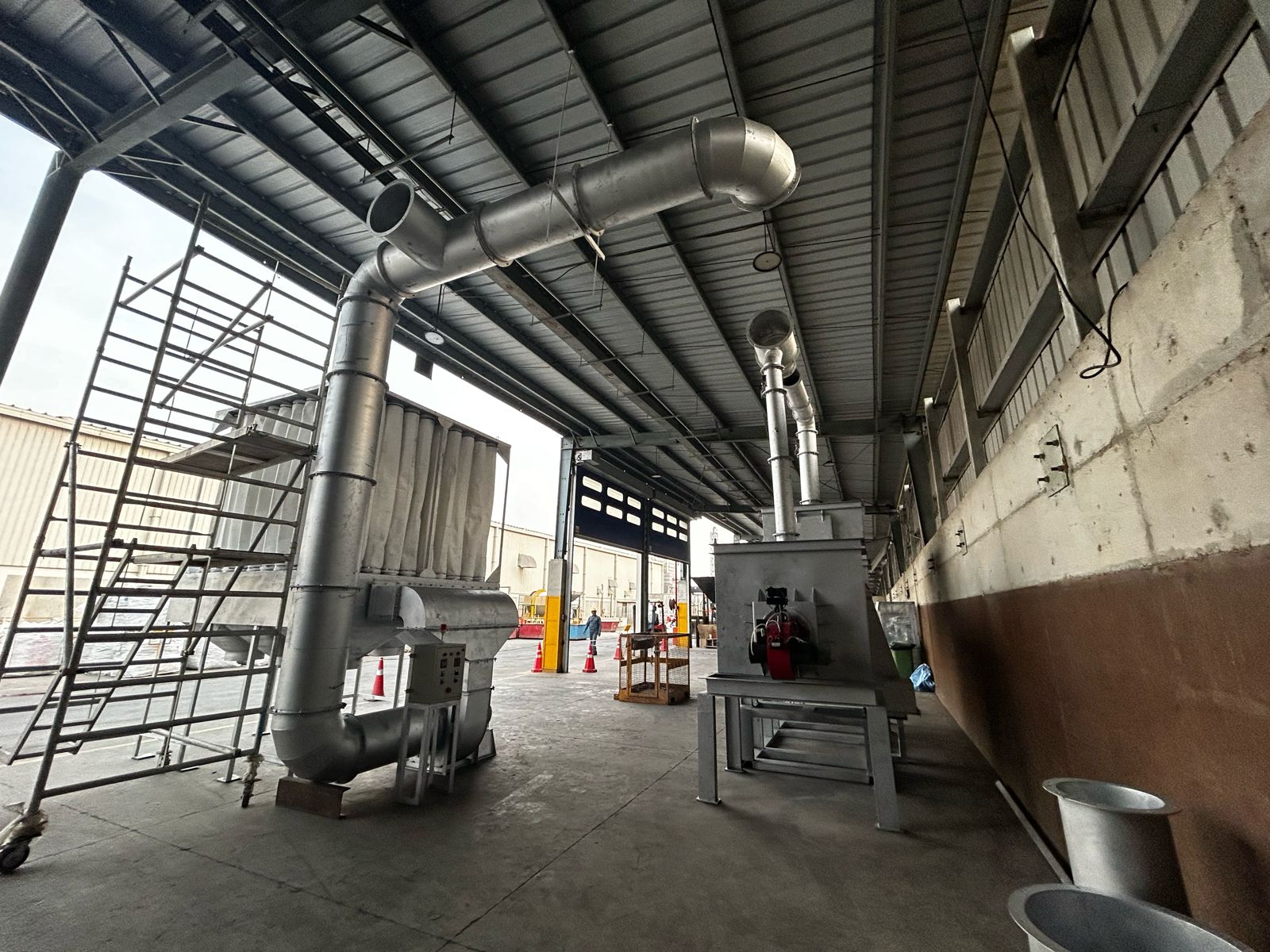

If your dust collector is underperforming — clogged filters, high pressure drop, frequent bag replacements — the root cause is often an incorrectly sized system. And the most important sizing parameter you may not be checking is the air to cloth ratio.
This guide explains what it means, how to calculate it, and what the right number should be for your industry.
What Is Air to Cloth Ratio?
Air to cloth ratio (also called the filter ratio or A/C ratio) is the relationship between the volume of air flowing into your dust collector and the total filtration area available to handle it.
Formula:
Air to Cloth Ratio = Airflow (m³/min) ÷ Filter Area (m²)
The result tells you how many cubic metres of air each square metre of filter cloth must handle per minute. A lower number means the filter cloth has more "breathing room." A higher number means the cloth is being overworked.
Why Does It Matter?
Think of it like water through a sponge. If you pour too much water too fast, it doesn't filter — it floods. The same happens with dust-laden air and filter bags.
When the air to cloth ratio is too high:
Dust builds up on the filter surface faster than the cleaning cycle can remove it
Pressure drop across the filter increases
Filter bags wear out faster and need early replacement
The fan motor works harder, consuming more energy
In worst cases, fine dust passes through and enters your workspace or atmosphere
When it's correctly sized:
Filters clean effectively and last longer
Pressure drop stays within design limits
Energy consumption is optimised
Your system meets CPCB/SPCB emission standards consistently
What Is the Correct Air to Cloth Ratio?
There is no single universal number. The correct ratio depends on the type of dust you're collecting.
Dust Type | Recommended A/C Ratio (m³/min per m²) |
|---|---|
Light dust (flour, grain, wood) | 3.0 – 4.5 |
Medium dust (cement, silica, coal) | 2.0 – 3.0 |
Fine / heavy dust (metal fumes, carbon black) | 1.0 – 2.0 |
Sticky or hygroscopic dust | Below 1.5 |
These ranges follow ACGIH (American Conference of Governmental Industrial Hygienists) guidelines, which are the industry standard for industrial ventilation and dust control system design.
If you're collecting fine metal dust or fumes from welding and grinding, you need a significantly lower ratio — meaning more filter area for the same airflow — compared to a woodworking application.
How to Calculate It for Your System
Step 1: Determine your required airflow. This comes from the number of capture hoods, duct velocities, and process exhaust volumes in your facility. Your EHS team or equipment supplier should have this figure in m³/min or CFM.
Step 2: Convert CFM to m³/min if needed (1 CFM = 0.0283 m³/min).
Step 3: Know your total filter area. For a bag filter, this is the sum of the surface area of all filter bags. Your dust collector datasheet will specify this.
Step 4: Divide airflow by filter area.
Example:
Airflow required: 150 m³/min
Total filter area: 75 m²
A/C Ratio = 150 ÷ 75 = 2.0
For medium dust like cement or silica, this falls within the acceptable range.
Common Mistakes to Avoid
Oversizing airflow without adding filter area. Many plants increase fan capacity to improve capture at the hood, but forget to upsize the filter. This drives the A/C ratio too high and causes premature filter failure.
Using the wrong ratio for the dust type. A ratio that's fine for sawdust will choke up on metal grinding dust. Always match the ratio to the specific dust in your process.
Ignoring moisture and temperature. Hot or humid air affects filter cake formation. In high-humidity environments, the effective A/C ratio should be on the lower end of the recommended range.
Buying based on airflow alone. Two dust collectors with the same rated airflow can have very different filter areas. Always ask for the total filtration area (m²) before purchasing.
How Flowmax Sizes Dust Collectors
At Flowmax, every system is sized based on the actual dust load, particle size, and airflow requirements of your process — not generic catalogue specs. We follow ACGIH standards and design our pulse jet bag filters and baghouse dust collectors with the correct air to cloth ratio built in from the start.
Whether you're running a foundry, a metal fabrication shop, a pharmaceutical plant, or a food processing facility, the filter area in your Flowmax system is calculated for your specific dust — not an average.
Talk to an Engineer
If you're unsure whether your current dust collector is correctly sized, or if you're planning a new installation, speak with a Flowmax engineer. We can review your airflow requirements, dust type, and existing setup — and tell you exactly what ratio your system is running at.
[Request a free system review →]
Flowmax Filtration India Private Limited — Manufacturers of industrial dust collectors and fume extraction systems. Serving plants across India since 2016.
