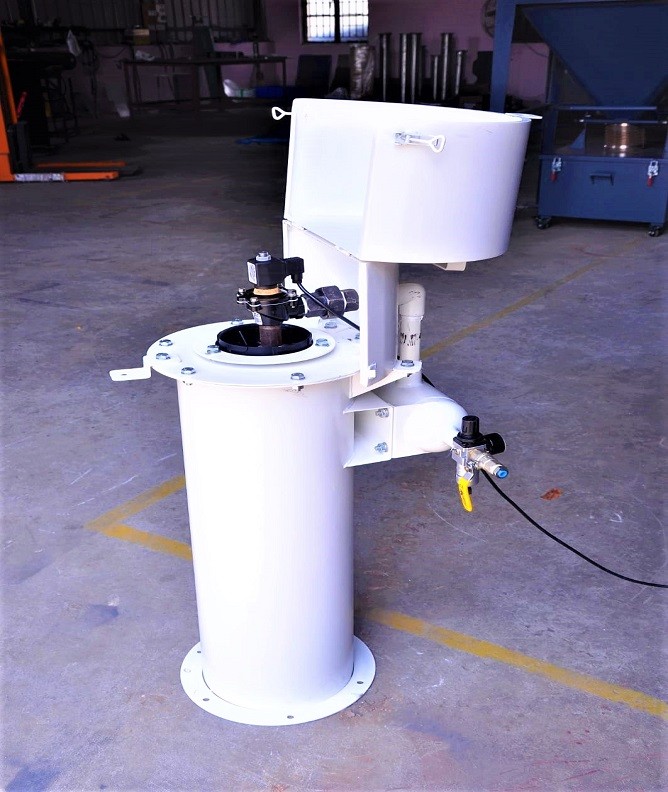

The Hopper top venting system is suitable for mechanically filled hoppers and Silos.
Dust from silos or hoppers is collected by cartridge filter element and dropped back the products in hopper or Silo after the action of the compressed air pulse jet which removes dust from the filter. A top cover that protects from Weathering.
Filter Area: 1.58 m2 (17 sq ft)
Air volume: from 150 m³/h (90 cfm) To required cfm
Cartridge filter element
Compressed air pulse-jet cleaning system (4 to 6 bar)
casing with bottom flange
Compact design
High filtration efficiency
Easy installation and retrofitting
